Fox

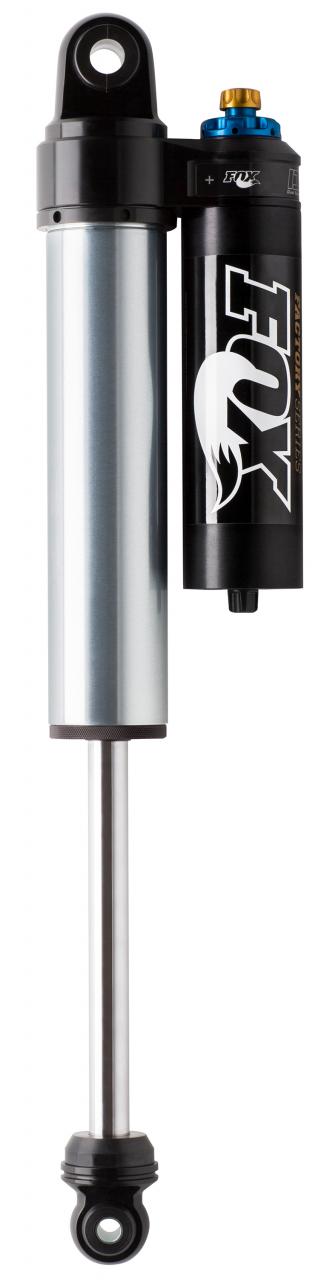

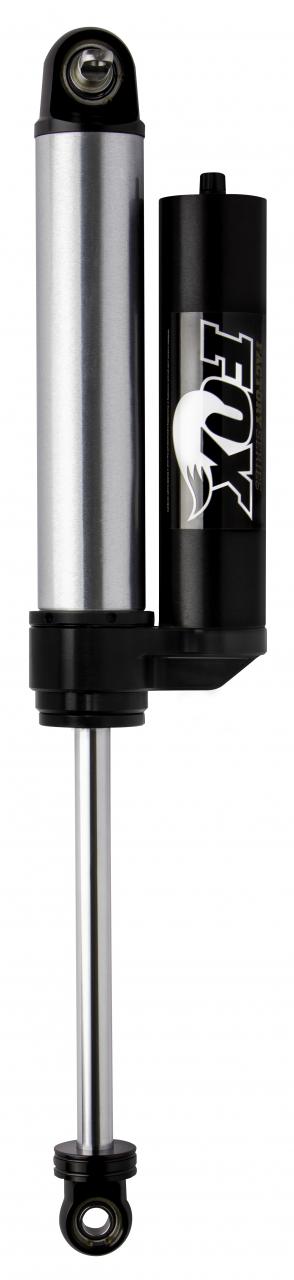

FOX JK REAR FACTORY RACE SERIES 2.5 INTERNAL BYPASS RESERVOIR SHOCK (PAIR)

FOX JK REAR FACTORY RACE SERIES 2.5 INTERNAL BYPASS RESERVOIR SHOCK (PAIR)

Regular price $1,799.95 USD
Regular price Sale price $1,799.95 USD
Sale Sold out
Shipping calculated at checkout.
Style



*Select from Standard or Adjustable

The Factory Race Series 2.5 Internal Bypass shock delivers patented race-dominating position sensitive damping technology and performance in a hassle free bolt-on kit. Patented, position sensitive internal bypass technology contains internal passages that allow fluid to bypass the piston through regulated ports as it moves through the travel. They allow for a plush predictable ride over normal off-road driving conditions and also have the ability to ramp up damping force for extreme use.

These heavy-duty, steel-bodied shocks are loaded with anodized billet aluminum components and race-bred internal valving. They are designed to bolt right on with your aftermarket long-arm suspension lift kit. Large 2.5 inch remote reservoirs with a large -10 hose increasing the shocks cooling capabilities. The Factory Race 2.5 Series Internal Bypass shocks utilizes all of the same components from our race winning Trophy Truck shocks with stainless steel shock shafts, PTFE-lined spherical bearings, proprietary racing oil and high-temp Viton® seals.


Body 2.5" smooth bore zinc plated seamless steel body
Body Plating Zinc-plated for long lasting finish
Reservoir 2.5" Smooth bore and honed seamless alloy reservoir
Components Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft 7/8" 17-4 H900 stainless steel hard-chrome plated
Piston 6061-T6 hard-anodized, high flow aluminum piston
Valving Application specific valving to maximize performance
Seals Redundant sealing pack system main seal, wiper seal, scraper seal Optional high temperature Viton seals
Oil JM92 Advanced Suspension Fluid for improved performance at variable temperatures
Bearing PTFE-lined, heat-treated, alloy steel spherical
Adjuster DSC-Dual Speed Compression (adjustable type only)
Extended 27.860
Compressed 17.120
Travel 10.740
Top Mount OEM
Bottom Mount Eyelet
