Fox

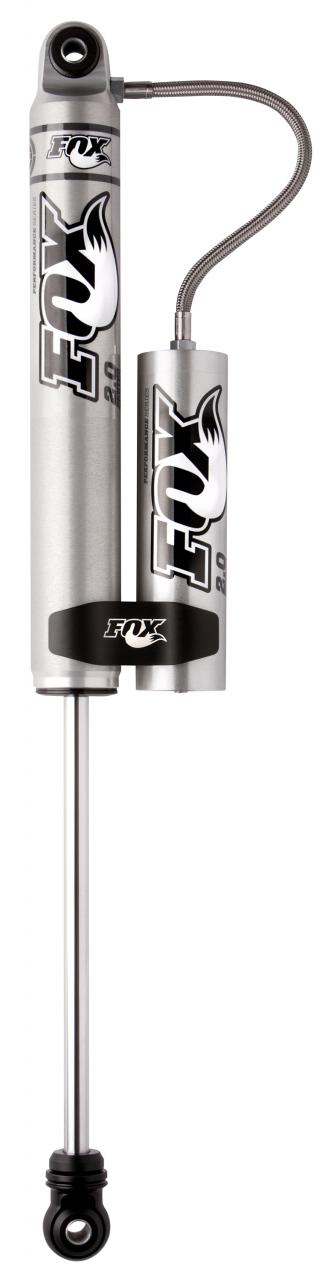

FOX JK REAR PERFORMANCE SERIES 2.0 SMOOTH BODY RESERVOIR SHOCK

FOX JK REAR PERFORMANCE SERIES 2.0 SMOOTH BODY RESERVOIR SHOCK

Regular price $309.95 USD
Regular price Sale price $309.95 USD
Sale Sold out
Shipping calculated at checkout.
Size

*Select from Standard or Adjustable in 1.5-3.5" Lift, 4-6" Lift, or 6.5-8" Lift

The aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock.

Its external reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific vavling provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.


Body 2.0" Impact extruded 6061-T6 aluminum will resist rust over time
Body Plating Clear-anodized for a durable finish
Reservoir 2.0" Smooth bore 6061-T6 Aluminum is hard anodized
Components Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft 5/8" hard chrome plated heat-treated alloy steel
Piston Race-developed high-flow piston design
Valving Application specific valving to maximize performance
Seals Redundant sealing pack system main seal, wiper seal, scraper seal
Oil JM92 Advanced Suspension Fluid for improved performance at variable temperatures
Bushings Quiet nitrile rubber allows for increased suspension articulation

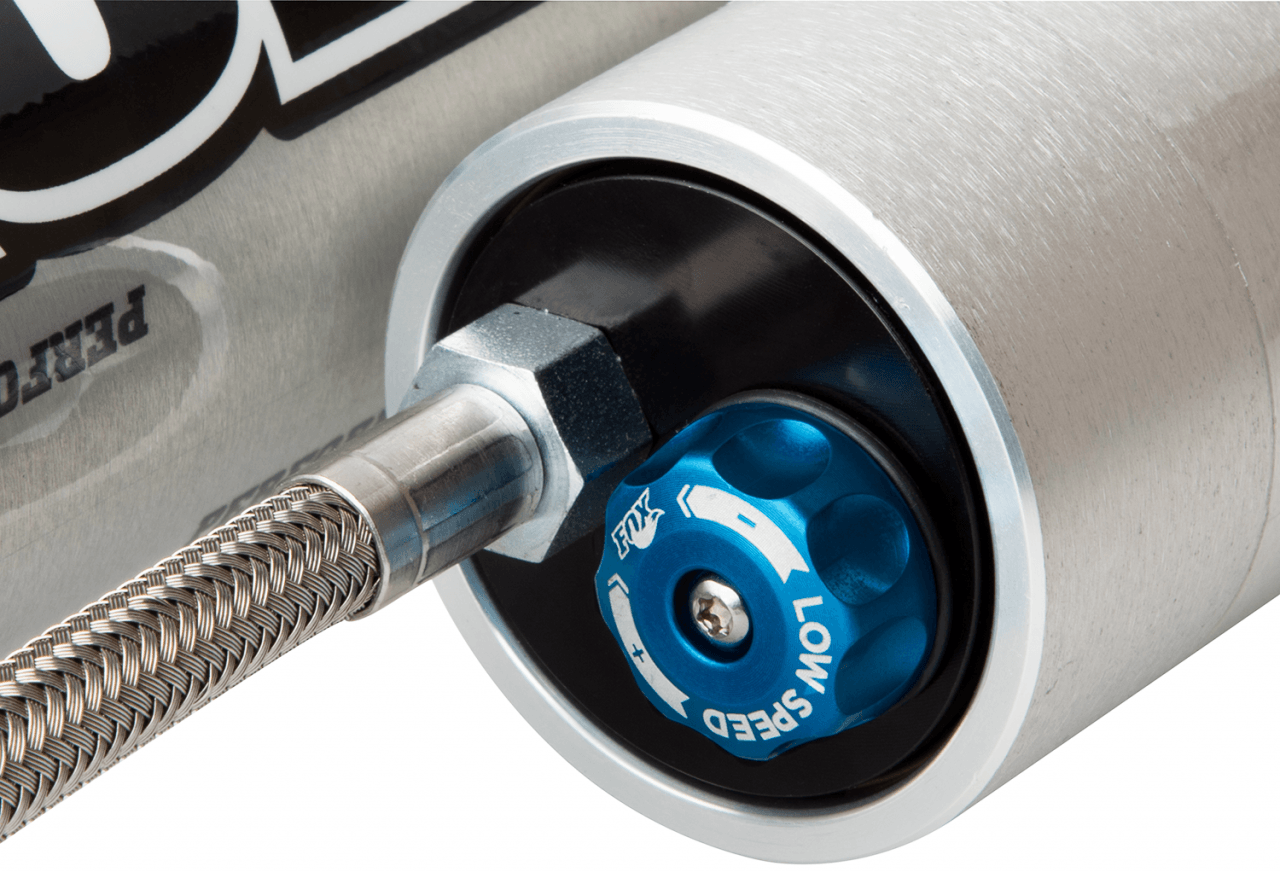

Adjuster DSC - Dual Speed Compression (only adjustable series)
Extended 24.450 / 28.45033.950
Compressed 14.850 / 16.850 / 19.850
Travel 9.600 / 11.600 / 14.100
Top Mount Stem Top
Bottom Mount Eyelet
Fitment notes Includes Billet Reservoir Clamp
