FOX JL REAR PERFORMANCE SERIES 2.0 SMOOTH BODY RESERVOIR SHOCK
FOX JL REAR PERFORMANCE SERIES 2.0 SMOOTH BODY RESERVOIR SHOCK
*Select from: 2-3" Lift, 3.5-4" Lift, or 4.5-6" Lift

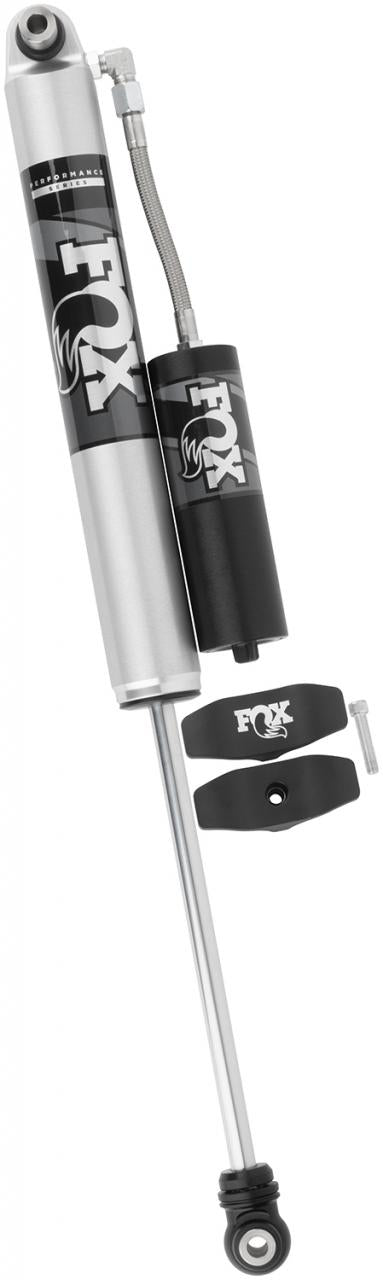

The aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock.

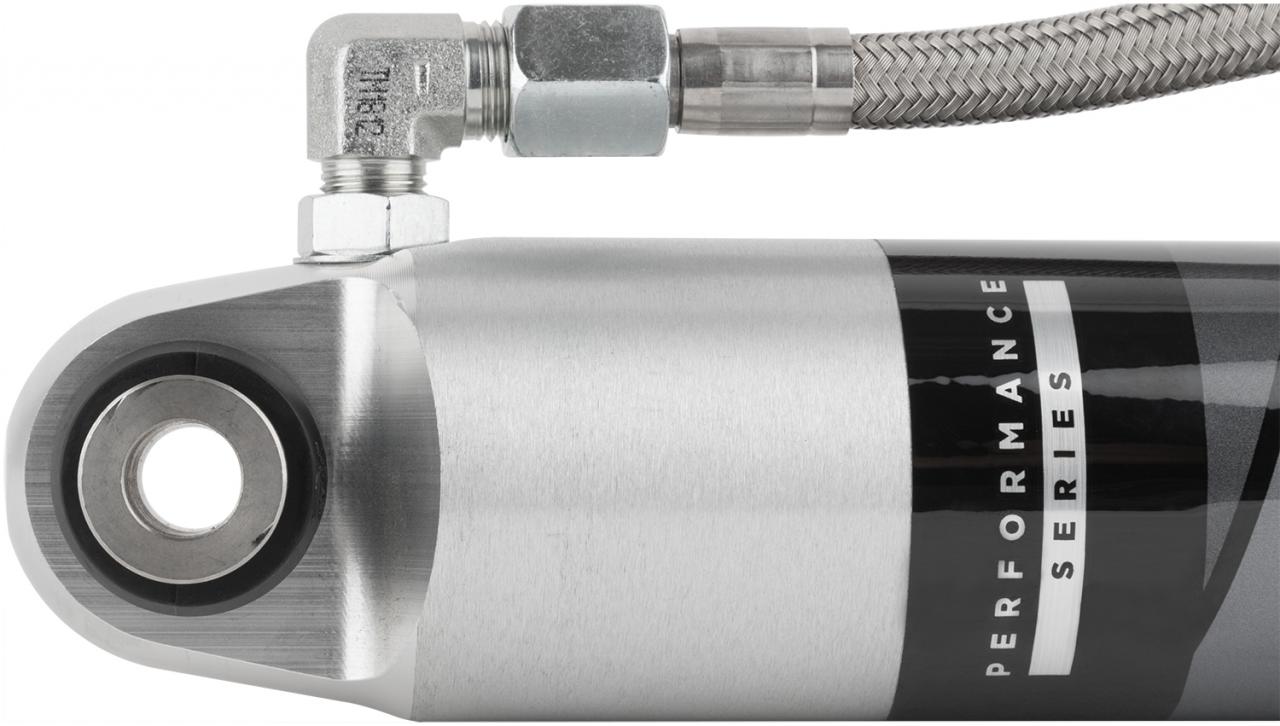

Its external reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific vavling provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.
Body | 2.0" Impact extruded 6061-T6 aluminum will resist rust over time |
---|---|
Body Plating | Clear-anodized for a durable finish |
Reservoir | 2.0" Smooth bore 6061-T6 Aluminum is hard anodized |
Components | Black-anodized, CNC-machined 6061-T6 billet aluminum |
Shaft | 5/8" hard chrome plated heat-treated alloy steel |
Piston | Race-developed high-flow piston design |
Valving | Application specific valving to maximize performance |
Seals | Redundant sealing pack system main seal, wiper seal, scraper seal |
Oil | JM92 Advanced Suspension Fluid for improved performance at variable temperatures |
Bushings | Quiet nitrile rubber allows for increased suspension articulation |
Extended | 29.090 / 30.590 / 32.590 |
Compressed | 17.400 / 18.400 / 19.460 |
Travel | 11.690 / 12.190 / 13.190 |
Top Mount | Eyelet |
Bottom Mount | Eyelet |
Fitment notes | Includes Billet Reservoir Clamp |
