KC HiLiTES
KC HiLiTES 3" C-Series C3 LED Pair Pack System
KC HiLiTES 3" C-Series C3 LED Pair Pack System
Regular price
$189.99 USD
Regular price
Sale price
$189.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
FEATURES
-3" 12W C-SERIES C3 LED lights
-Die-Cast Aluminum Housing
-Available in Spot or Flood Beam Patterns
-8° Spot or 90° Flood optics
-Available in Clear or Amber LED
-On-Board Thermal Management for Light Efficiency
LIGHT PERFORMANCE(PER LIGHT)
-Raw Lumens: 1,080 lm
-Lux @ 10 Meters: Spot- 390 lx, Flood- 55 lx, Amber- 120 lx,
-Candela: Spot- 39,000 cd, Flood- 5,500 cd, Amber- 12,000 cd
-Beam Distance (meters): Spot- 395m, Flood- 148m, Amber- 219m
SPECIFICATIONS(PER LIGHT)
-Wattage: 12W
-LED Source: Osram LED
-Color Temperature: 6000K
-Amp Draw: 1.0A
-Voltage: 9V-32V
-IP Rating: IP67
-Product Dimensions: W - 3.22" x H - 3.42" x D - 3.14"

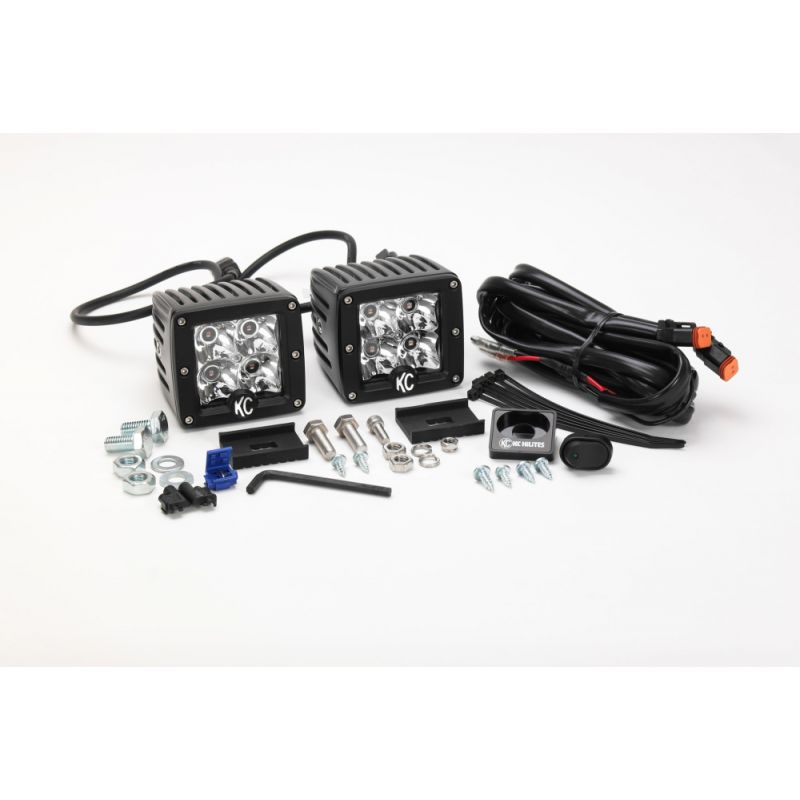

Parts Included with C-SERIES C3 Pair Packs
-(2) C3 LED Lights
-Deluxe Wiring Harness
-Die-Cast Mounting Brackets w/hardware
PERFORMANCE OUTPUT AND CLARITY
The C-Series LED C3 lights use a forward facing Osram LED design delivering a stout 1,080 Lumens of output with maximum power efficiency. They are perfect for front bumper, windshield, grille, and reverse light applications.
HIGH PERFORMANCE MEETS AFFORDABILITY
C-Series LED C3 lights feature a die-cast aluminum housing, aluminum core PCBs with thermal management, and lexan lenses. What you get is a perfect balance of affordable performance with maximum efficiency, stability and reliability.
SPOT OR FLOOD BEAM PATTERNS
When it comes to total road coverage, the C-Series LED C3 lights feature either spot or flood reflectors for maximum forward distance and increased peripheral illumination along road edges. Also available with Amber LEDs for greater visual contrast to tackle thick fog and mist
DESIGNED FOR DURABILITY
Off-road race tested, the C-Series LED was designed to handle the harshest environments. Featuring an IP67 rated housing with on-board Thermal Management for maximum light output and efficiency.
Available Part Numbers
• 3" C3 LED Pair Pack System - KC #330 (Spot Beam)
• 3" C3 LED Pair Pack System - KC #332 (Flood Beam)
• 3" C3 LED Pair Pack System - KC #315 (Spot Beam) (Amber)
-3" 12W C-SERIES C3 LED lights
-Die-Cast Aluminum Housing
-Available in Spot or Flood Beam Patterns
-8° Spot or 90° Flood optics
-Available in Clear or Amber LED
-On-Board Thermal Management for Light Efficiency
LIGHT PERFORMANCE(PER LIGHT)
-Raw Lumens: 1,080 lm
-Lux @ 10 Meters: Spot- 390 lx, Flood- 55 lx, Amber- 120 lx,
-Candela: Spot- 39,000 cd, Flood- 5,500 cd, Amber- 12,000 cd
-Beam Distance (meters): Spot- 395m, Flood- 148m, Amber- 219m
SPECIFICATIONS(PER LIGHT)
-Wattage: 12W
-LED Source: Osram LED
-Color Temperature: 6000K
-Amp Draw: 1.0A
-Voltage: 9V-32V
-IP Rating: IP67
-Product Dimensions: W - 3.22" x H - 3.42" x D - 3.14"
Parts Included with C-SERIES C3 Pair Packs
-(2) C3 LED Lights
-Deluxe Wiring Harness
-Die-Cast Mounting Brackets w/hardware
PERFORMANCE OUTPUT AND CLARITY
The C-Series LED C3 lights use a forward facing Osram LED design delivering a stout 1,080 Lumens of output with maximum power efficiency. They are perfect for front bumper, windshield, grille, and reverse light applications.
HIGH PERFORMANCE MEETS AFFORDABILITY
C-Series LED C3 lights feature a die-cast aluminum housing, aluminum core PCBs with thermal management, and lexan lenses. What you get is a perfect balance of affordable performance with maximum efficiency, stability and reliability.
SPOT OR FLOOD BEAM PATTERNS
When it comes to total road coverage, the C-Series LED C3 lights feature either spot or flood reflectors for maximum forward distance and increased peripheral illumination along road edges. Also available with Amber LEDs for greater visual contrast to tackle thick fog and mist
DESIGNED FOR DURABILITY
Off-road race tested, the C-Series LED was designed to handle the harshest environments. Featuring an IP67 rated housing with on-board Thermal Management for maximum light output and efficiency.
Available Part Numbers
• 3" C3 LED Pair Pack System - KC #330 (Spot Beam)
• 3" C3 LED Pair Pack System - KC #332 (Flood Beam)
• 3" C3 LED Pair Pack System - KC #315 (Spot Beam) (Amber)
