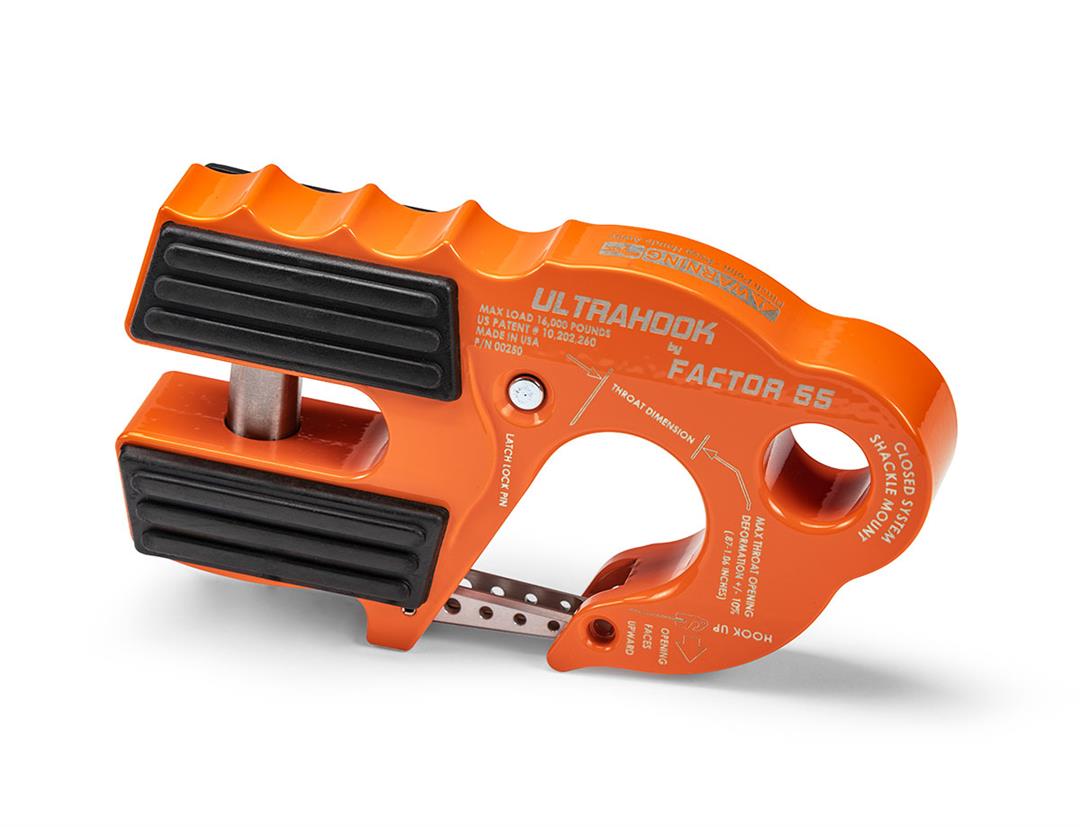

Factor 55 UltraHook Winch Hook

All the benefits of Closed System Winching™️ with the versatility of having a hook. Originally developed to meet the needs of off-road racers who wanted the speed of a hook and functionality of closed system winching, the low-profile UltraHook features an industry-first closed system shackle mount hole machined into the body of the hook and installs in minutes. A latch pin, which is stored in the hook’s body, can lock the safety latch securely into place for a true Closed Loop System™. Integrated finger grips promote proper “Hook Up” orientation. UltraHook is the first winch hook that can be stored neatly against a winch’s fairlead protecting it from a metal-to-metal connection, thanks to EPDM rubber pads, which also eliminate the UltraHook from rattling.

• Easy-to-install shackle mount with a hole machined into the hook’s body. Shackle pin mounting hole accepts screw pins from common ¾” and soft shackles up to 1/2”
• Use either as a conventional hook or a shackle mount
• No rope splicing required – double shear pin design accepts rope/cable eyes, for use with either steel or synthetic winch rope
• Lightweight – Precision CNC machined 7000 series Military Grade Aluminum
• Max opening deformation clearly laser engraved
• Safety latch with integrated latch lock pin allows for true closed system winching
• Includes 5/8” diameter aerospacegrade 6AI-4V grade V titanium doubleshear pin
• EPDM rubber pads for fairlead protection, and a finger grip feature that promotes proper “Hook Up” orientation; also prevents rattling
• Can be used with line diameters up to 3/8”
• 3” thick when folded flat
• Maximum Load: 16,000 lbs.
• Ultimate Strength – Hook Throat Opening: 31,000 pounds
• Ultimate Strength – Shackle Pin Mount: 48,000 pounds
• Weight: 32 oz
• Engineered, Tested, and Made in USA. Patent pending

PRODUCT SPECIFICATIONS

• The industry’s first winch hook with an integrated shackle pin mount
• Two methods of use: conventional hook opening, or shackle mount
• Shackle pin mount allows the safer practice of Closed System Winching
• Finger grip feature promotes proper “Hook Up” orientation
• Double locking safety clasp – lock the safety clasp with the included clevis pin
• Latch lock clevis pin stored conveniently in hook body
• Integrated EPDM rubber pads for fairlead surface protection
• Max opening deformation clearly laser engraved
• Lightweight – Precision CNC machined 7000 series Military Grade Aluminum
• No rope splicing required – double shear pin design accepts rope/cable eyes
• Designed for both steel cables and synthetic winch ropes
• Foldable to stow rattle free against fairleads
• Shackle pin mounting hole accepts ¾ shackle pins (.875” diameter)
• For rope and cable diameters up to 3/8’’
• Available in the Military Specification Hard Anodizing (Mil-A-8625 F Type III) Gray
• 5/8” diameter 6AI-4V grade V titanium double shear pin
• Max Rated Load: 16,000 pounds
• Ultimate Strength – Hook Throat Opening: 31,000 pounds
• Ultimate Strength – Shackle Pin Mount: 48,000 pounds
• Weight: 32oz

MADE IN THE USA
